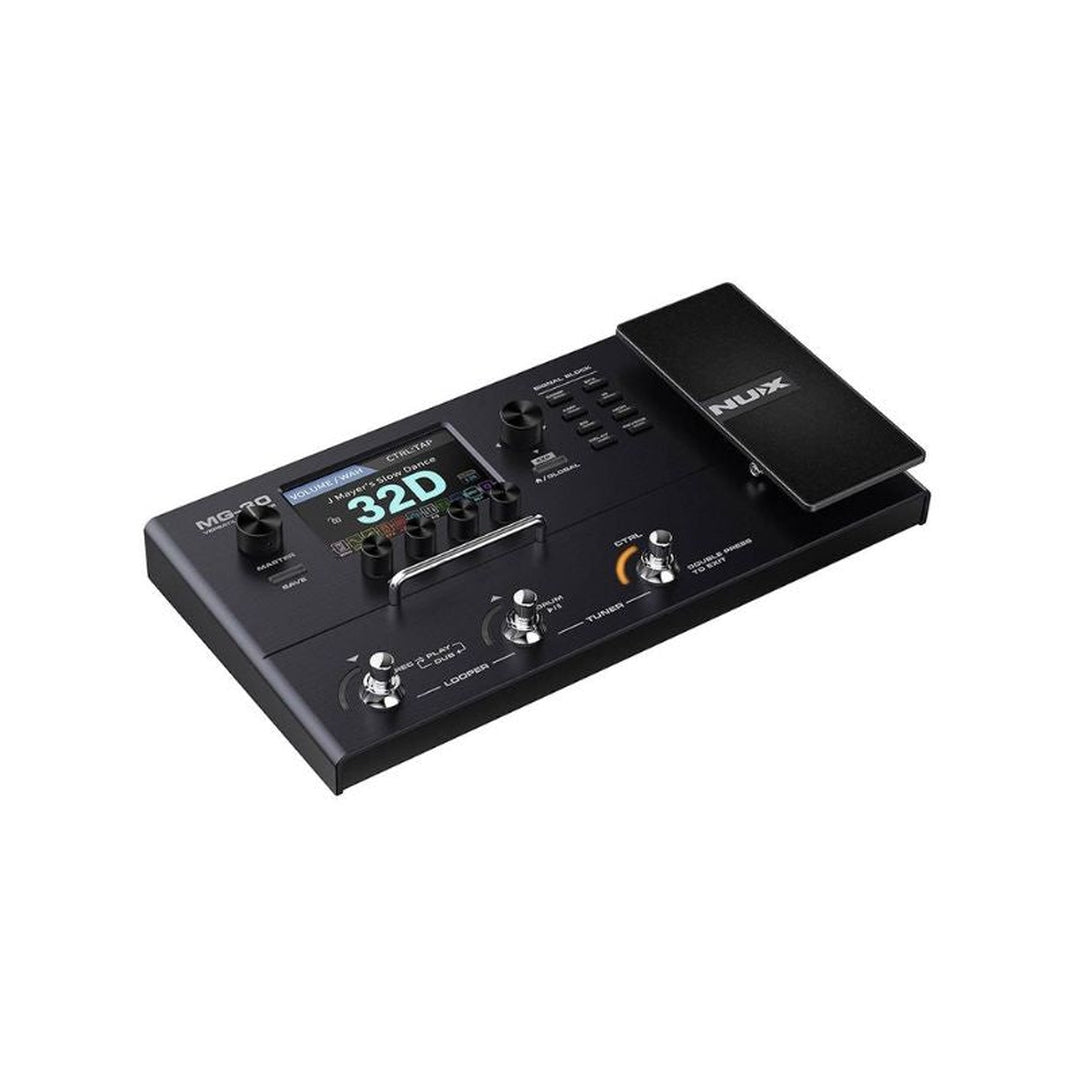

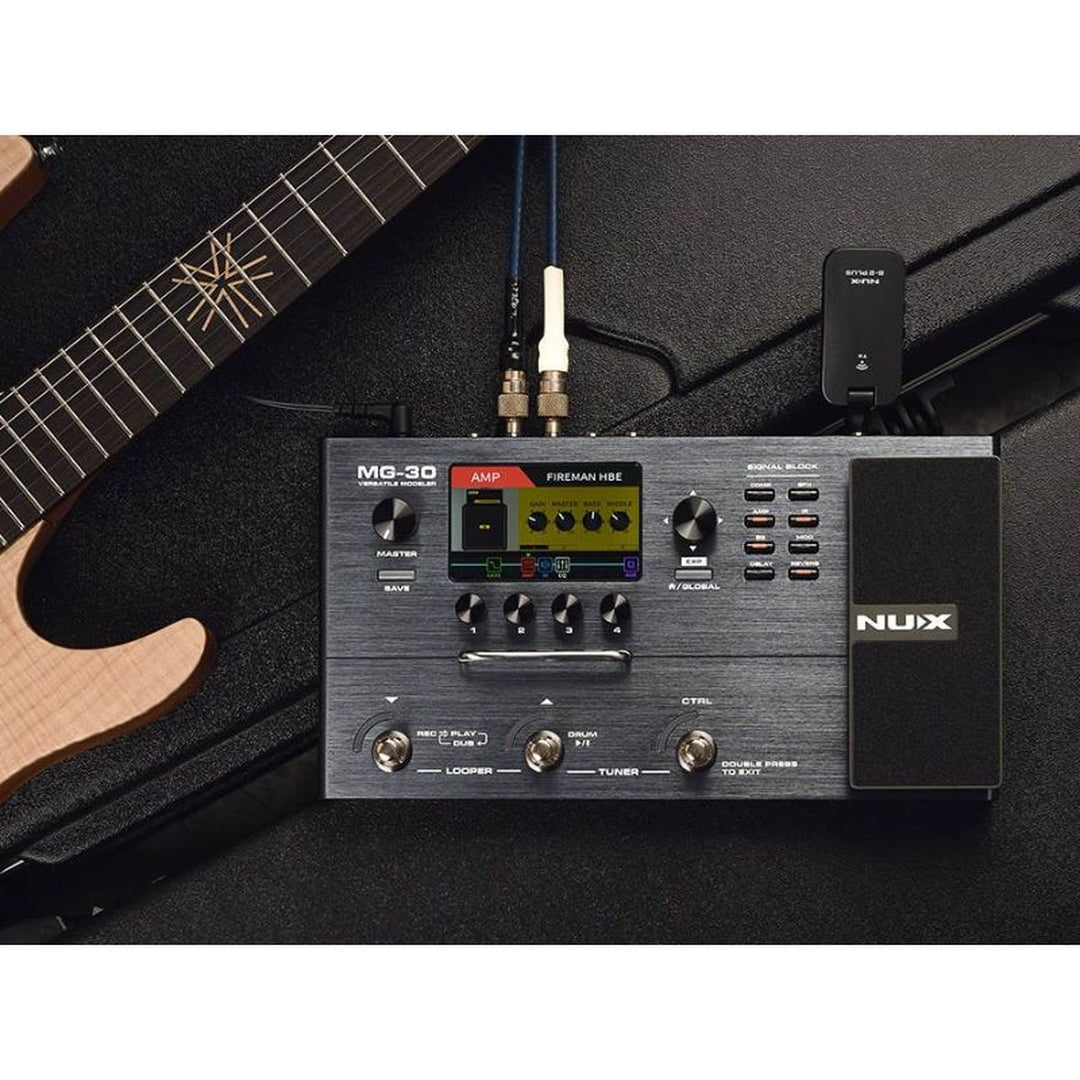

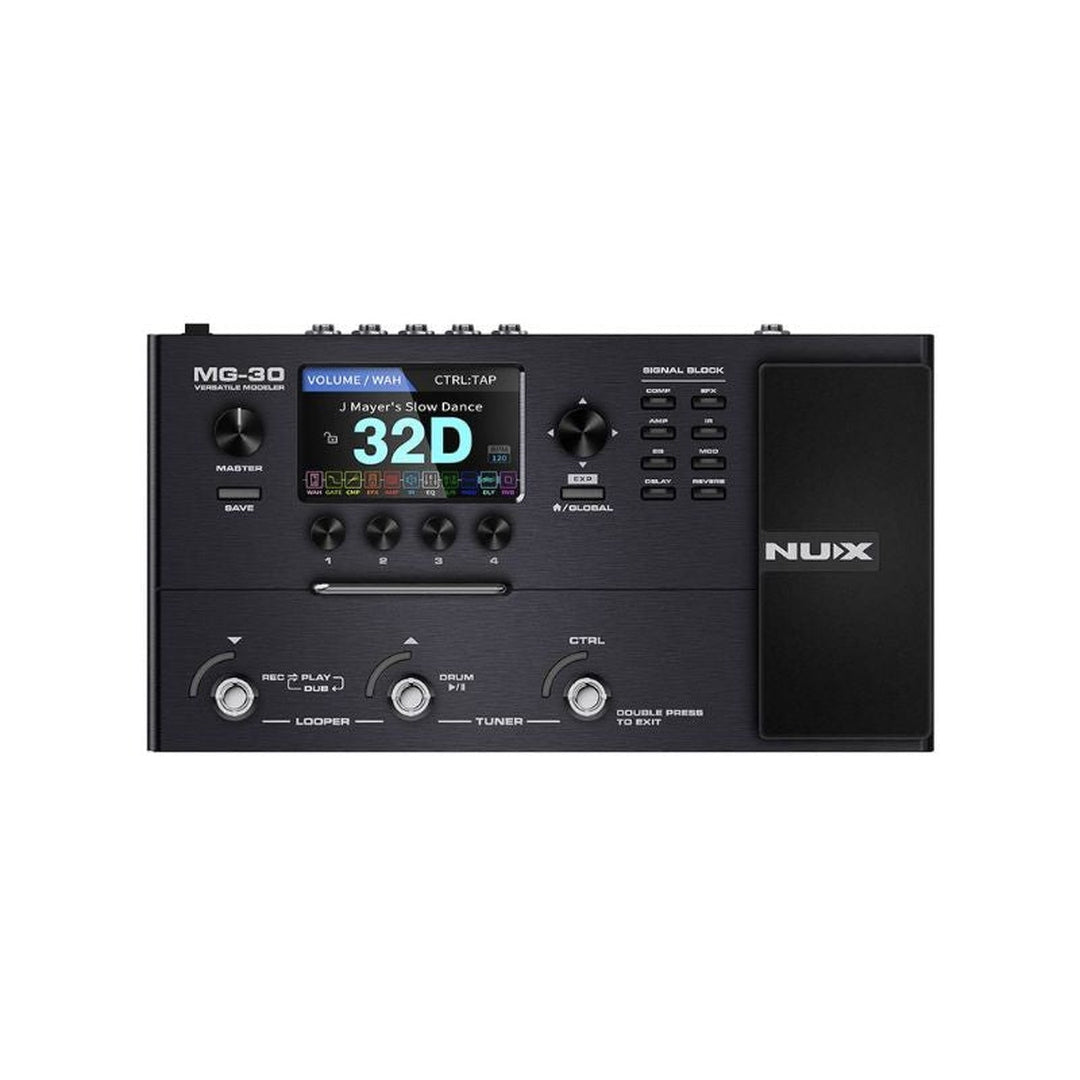

NUX MG-30 multi-effects pedal

The NUX MG-30 is a multi-effects pedal, amp modeler, and IR loader for guitarists and bassists. You get 30 amp models, dozens of effects, and simulations for guitar, bass, and acoustic guitar. You can change the order of the 11 signal blocks, and post-effects can be used in parallel. Thanks to the HD IR resolution of 1024 samples, you can also load external IR files. The dual processors keep latency low at approximately 2 ms.

Use the 4-inch color LCD to quickly set up your sounds. Via USB, you can use the MG-30 as an audio interface for recording and connect it to the QuickTone software for adjusting and sharing presets. A phrase looper and drum sounds are built-in. For connecting to other equipment, you get an effects loop, aux input, and headphone output, among other features. The included NMP-2 footswitch gives you two additional programmable switches for control while playing.

Specifications:

• Type: Multi-effects pedal, amp modeler, and IR loader
• Suitable for: Electric guitar, bass guitar, and acoustic guitar
• Amp models: 25 guitar, 3 bass, and 2 acoustic guitar

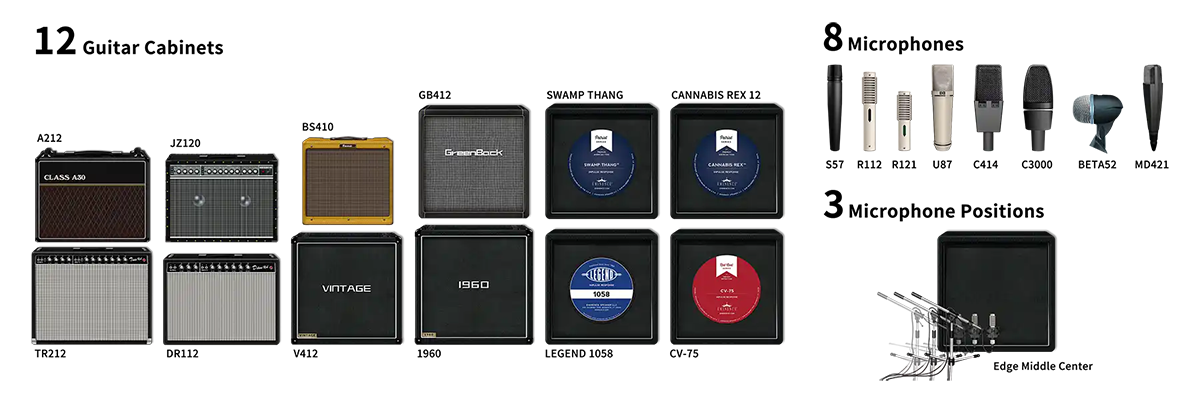

• Cabinet simulations: 8 guitar and 8 bass
• Acoustic IRs: 3
• Microphones: 8 models with 3 positions per microphone
• IR resolution: 1024 samples, support for external IRs per user patch
• Signal chain: 11 movable signal blocks, parallel post-effects possible
• Latency: Approx. 2 ms

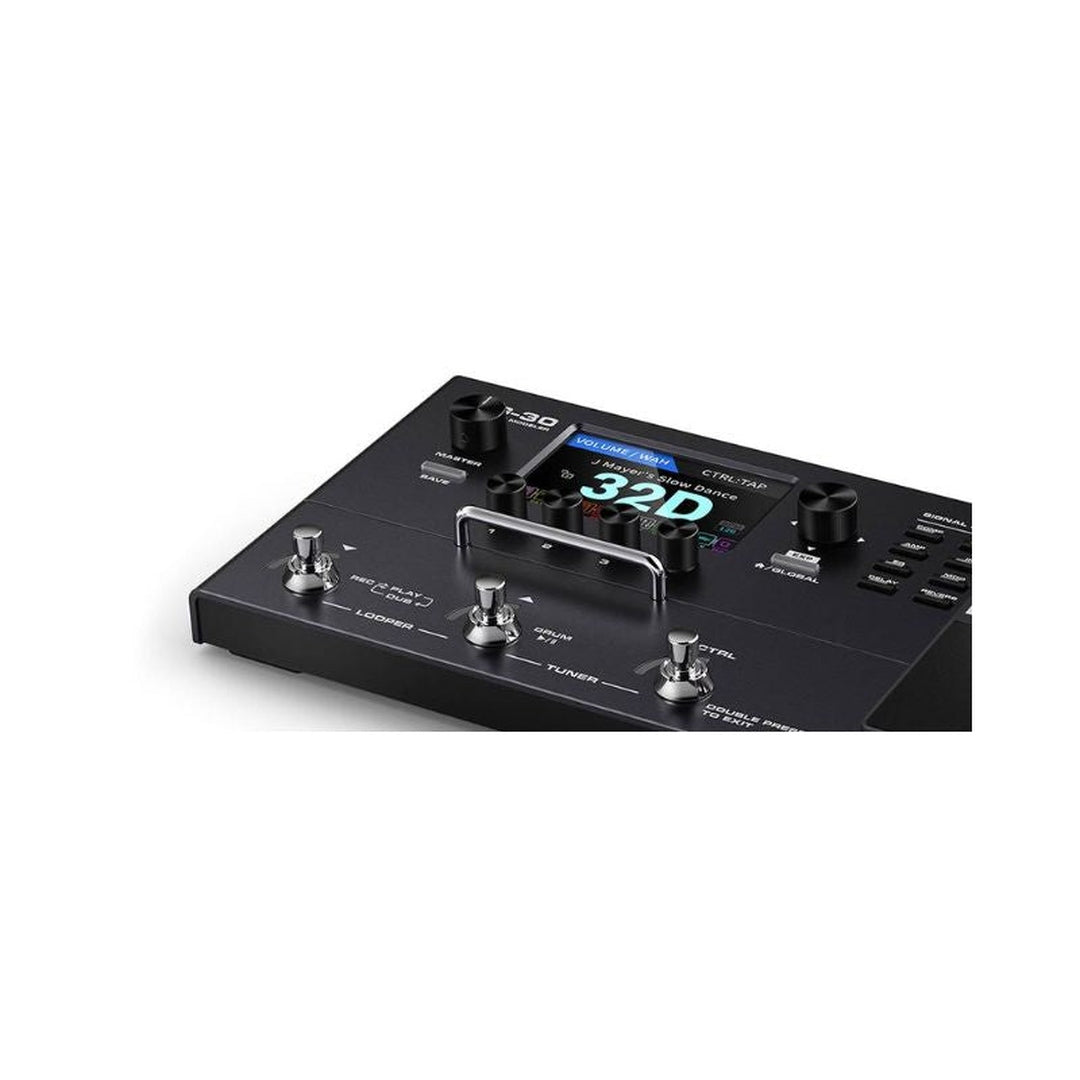

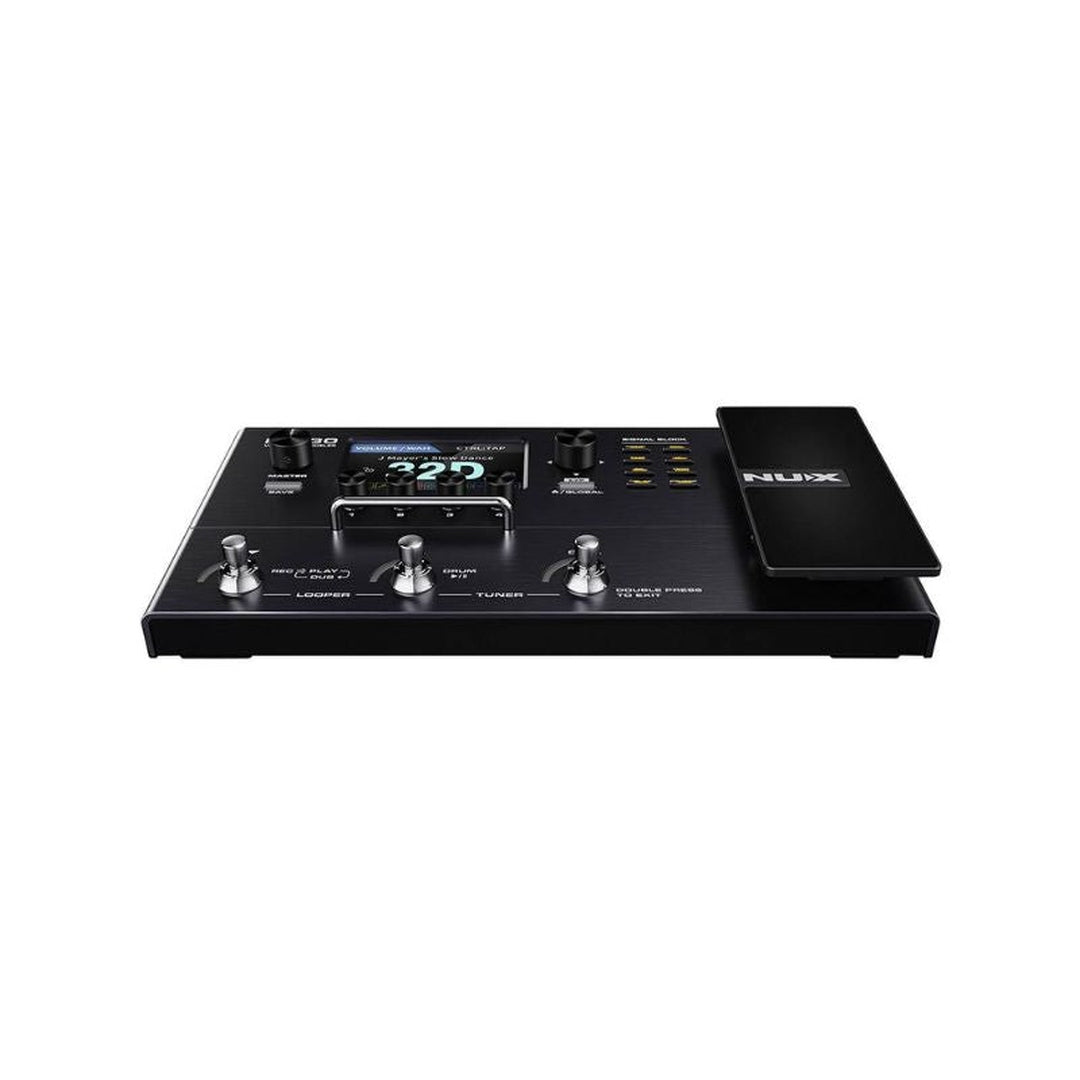

• Display: 4-inch color LCD

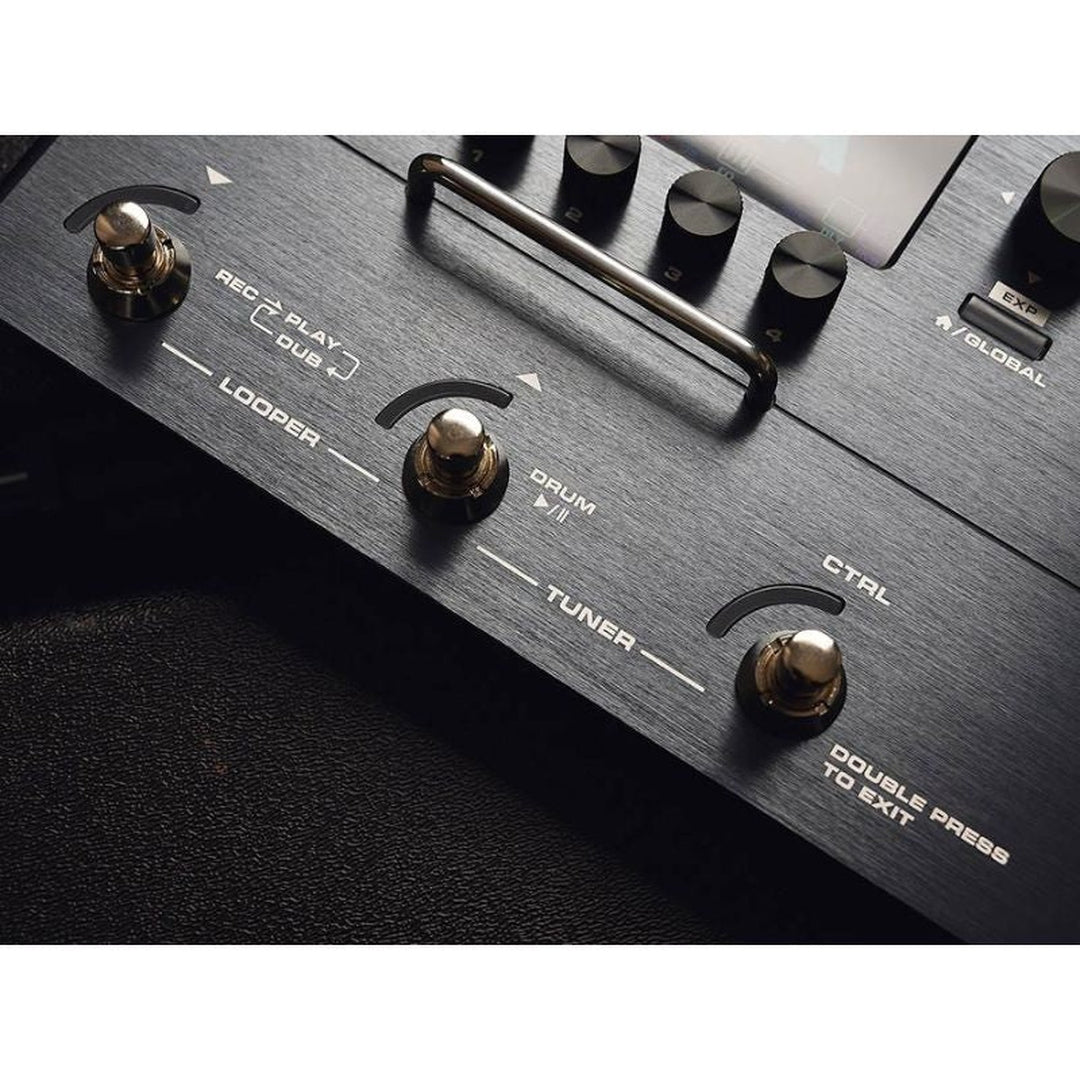

• Functions: Phrase looper, drum sounds, and adjustable amp bias
• USB: Audio interface, firmware updates, and QuickTone software

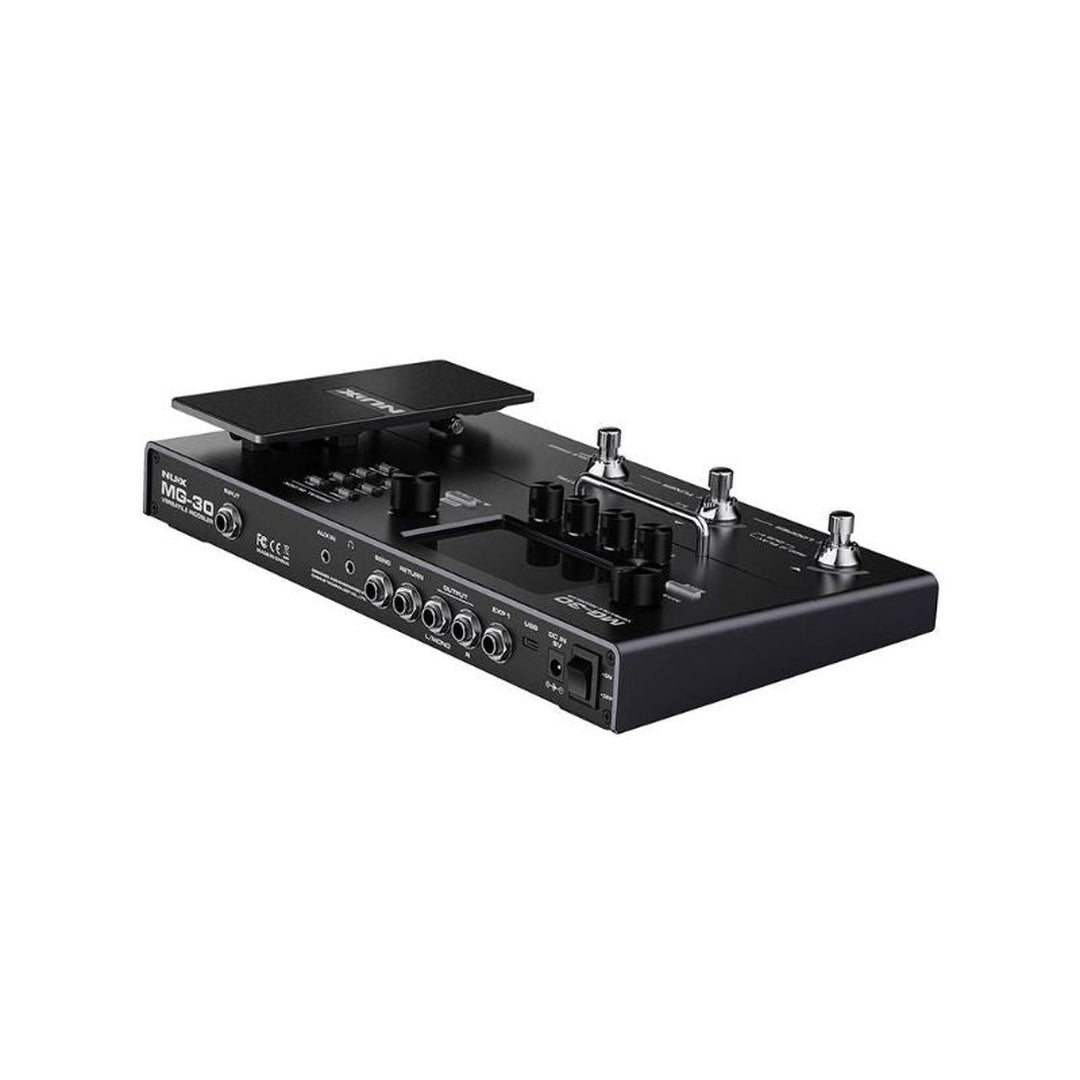

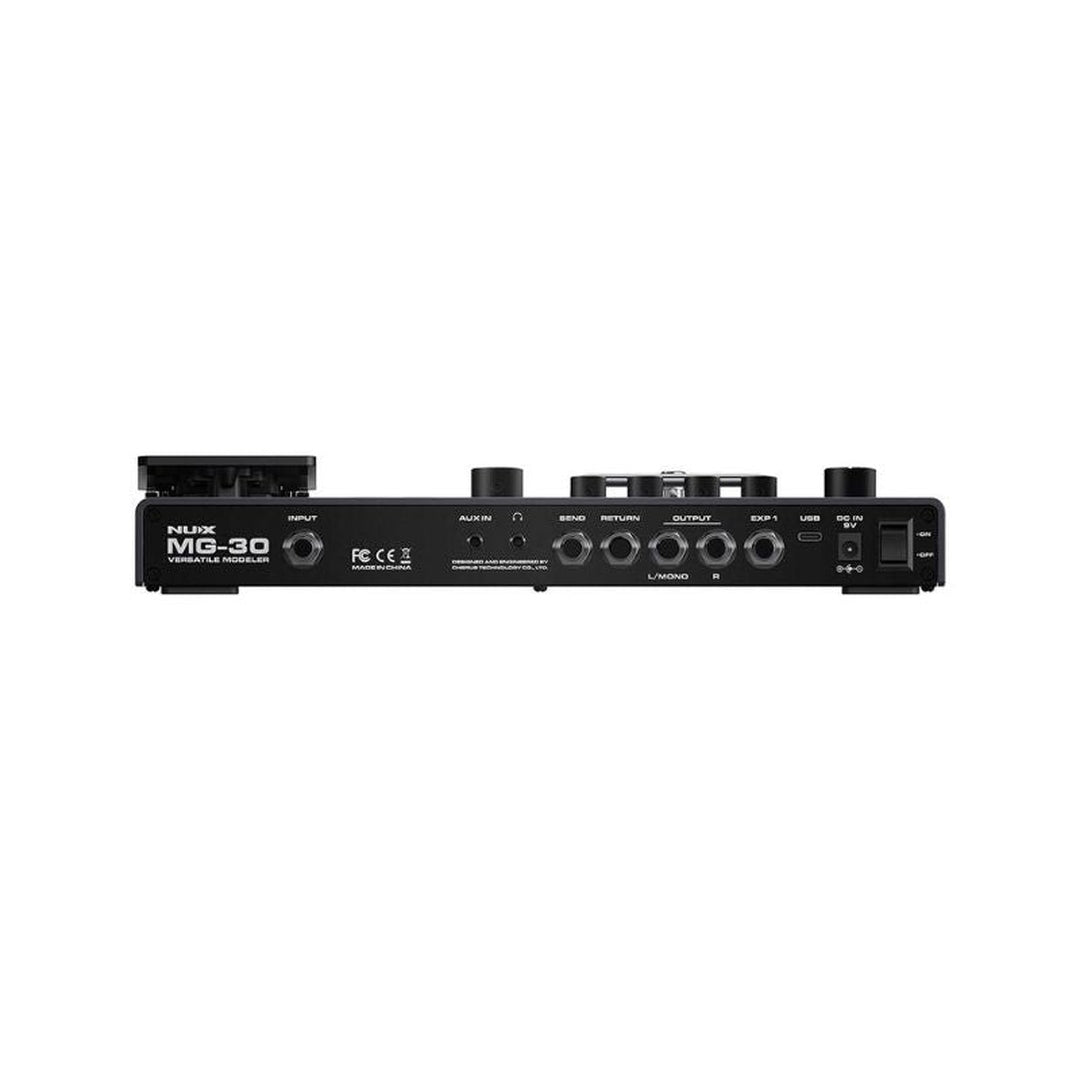

• Connections: Effects loop, aux input, and headphone output
• Input impedance: 1 MOhm
• Output impedance: 1 kOhm
• Power supply: 9 V DC, center negative, power consumption less than 400 mA
• Dimensions: 313 x 166 x 54 mm
• Weight: 1.5 kg
• Included: NUX NMP-2 external footswitch with 2 programmable switches
